JNK-1530D

Send Email

Product Details

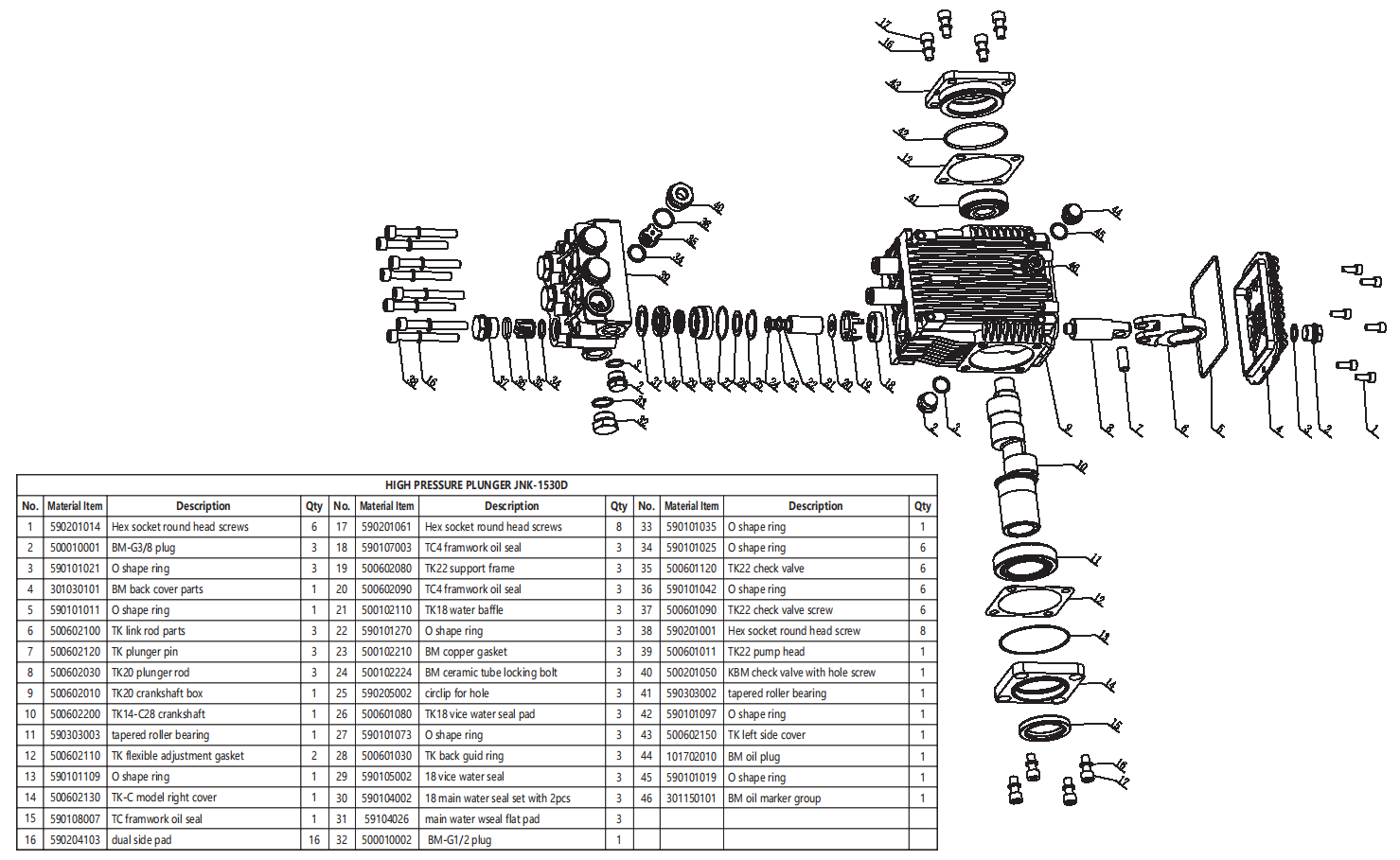

CONNECTION DIAGRAM

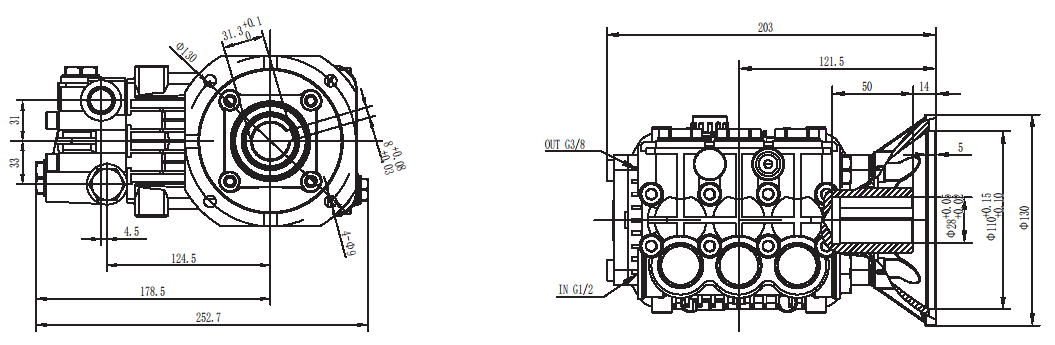

DIAGRAM

TECHNICAL PARAMETERS

型号 Model	流量 Flow Volume	压力 Pressure	功率 Power	转速 RotarySpeed	柱塞直径 Piston Diameter	曲轴行程 Crankshaft Travel	轴径 Crankshaft Diameter
型号 Model	L/min	bar	kw	rpm	mm	mm	mm
JNK-1530D	16	300	10	1450	18	14	24(外轴)
